Descripción

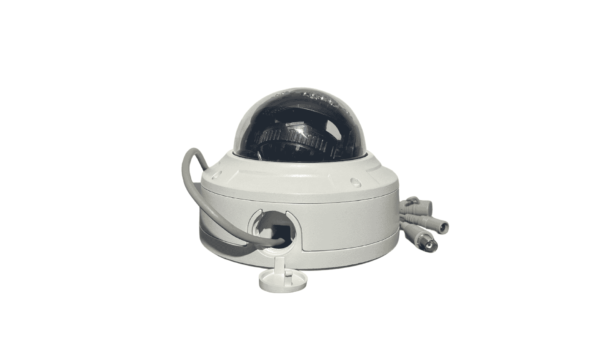

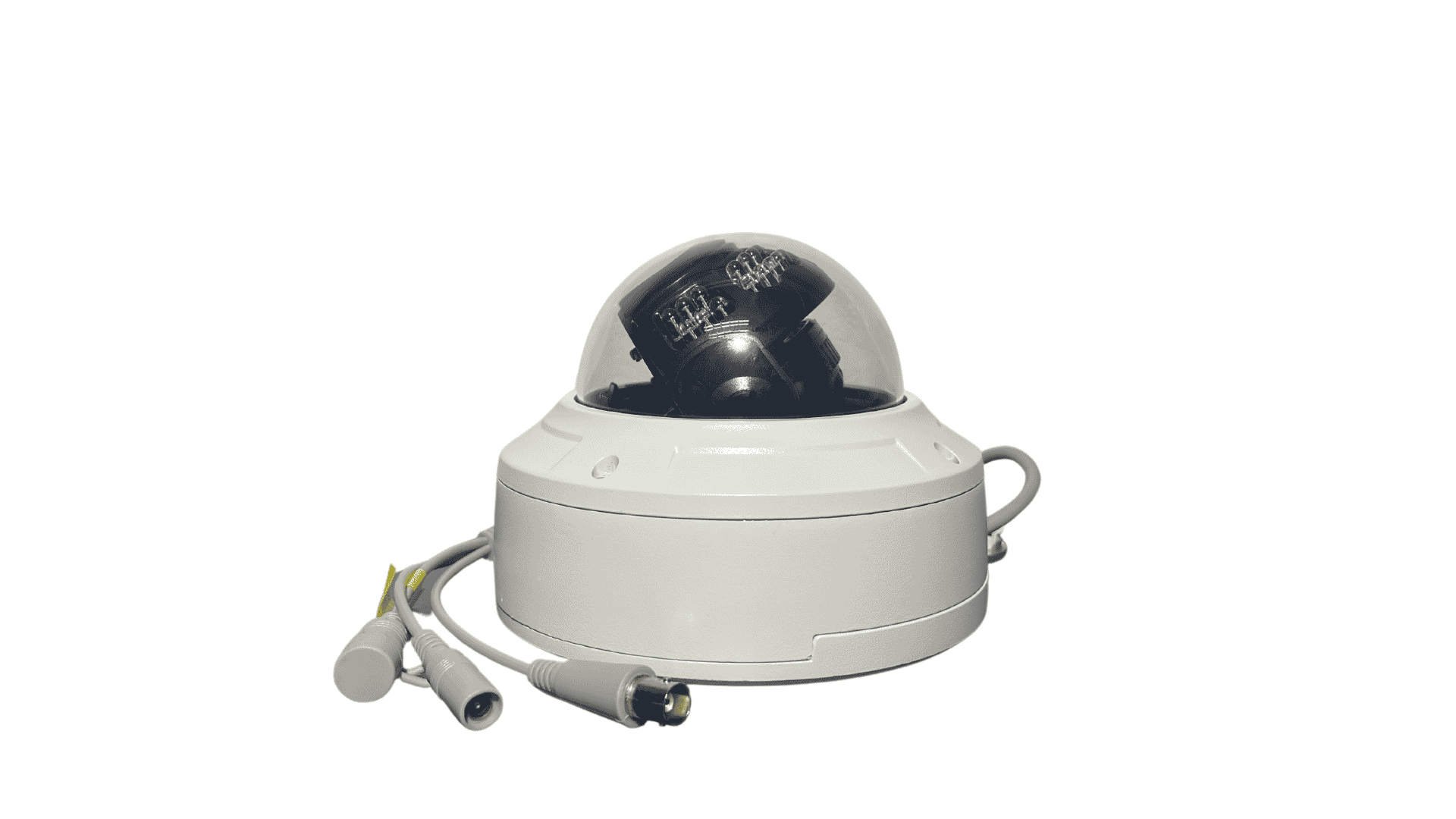

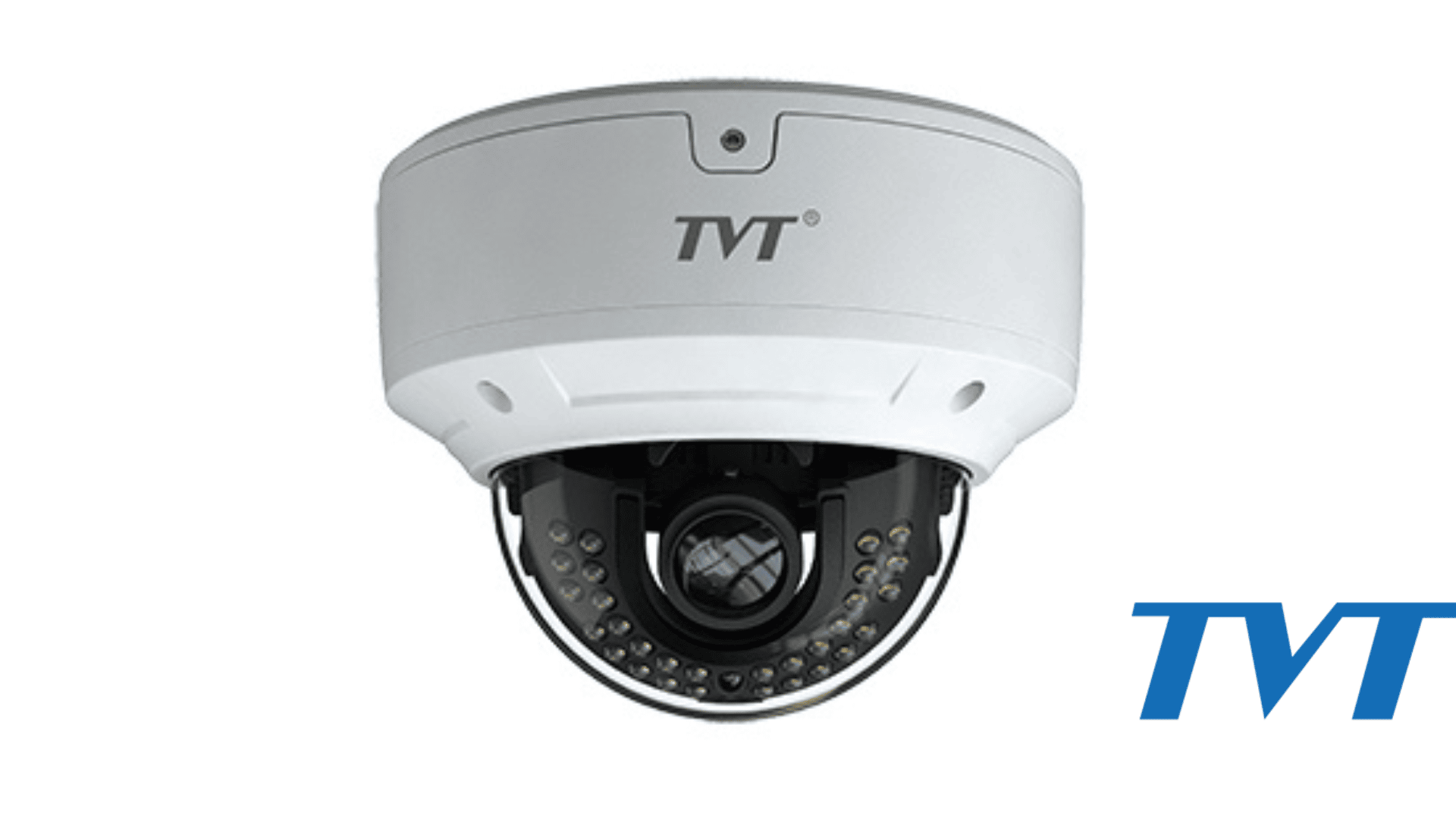

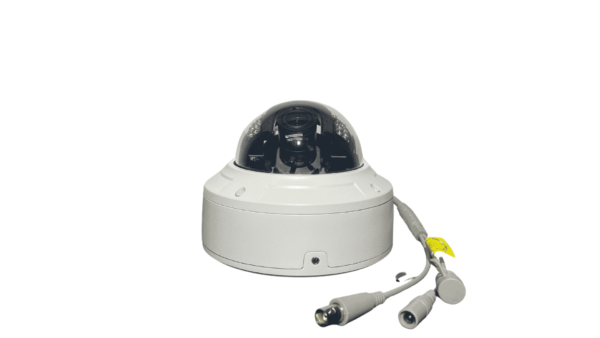

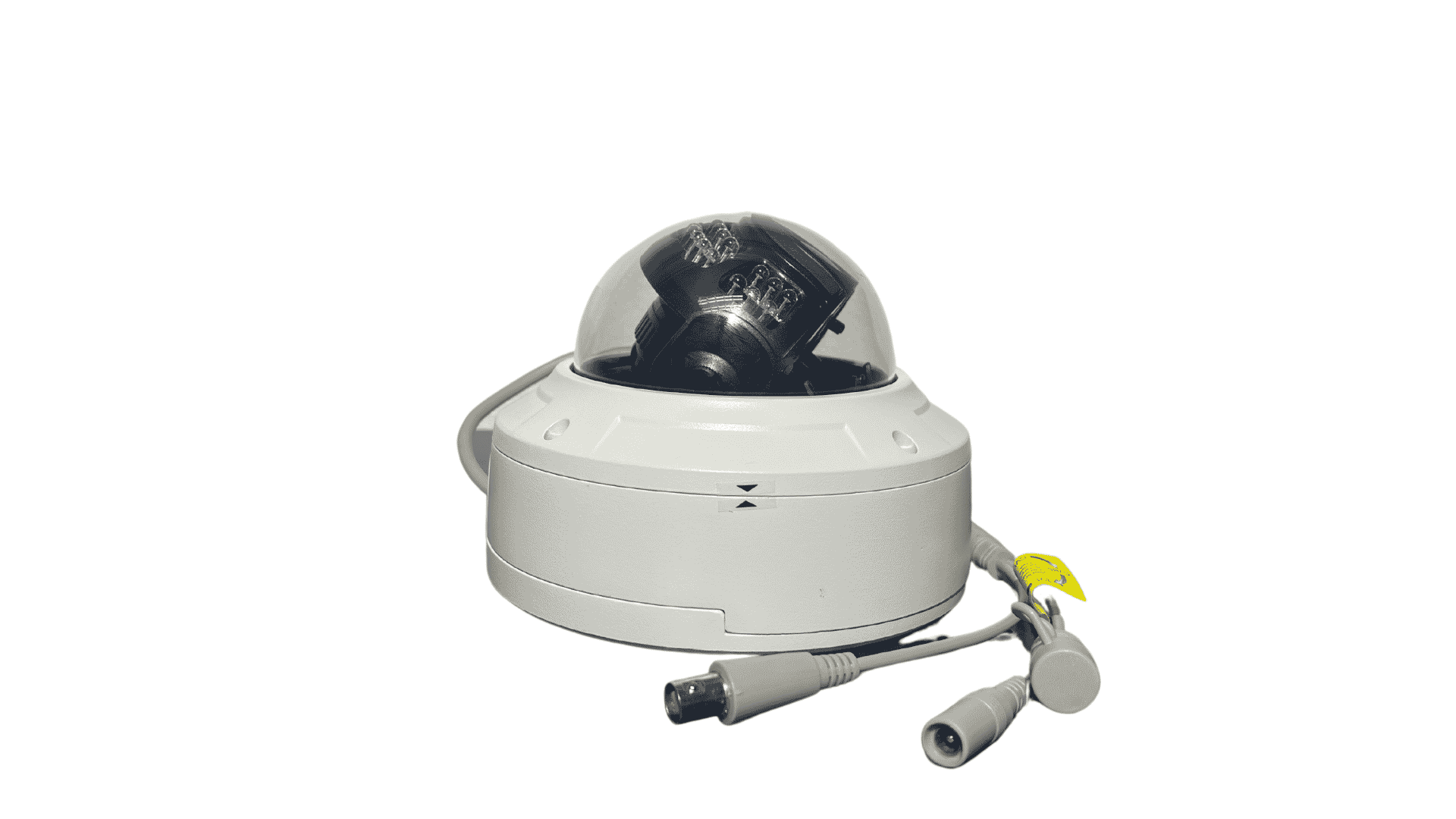

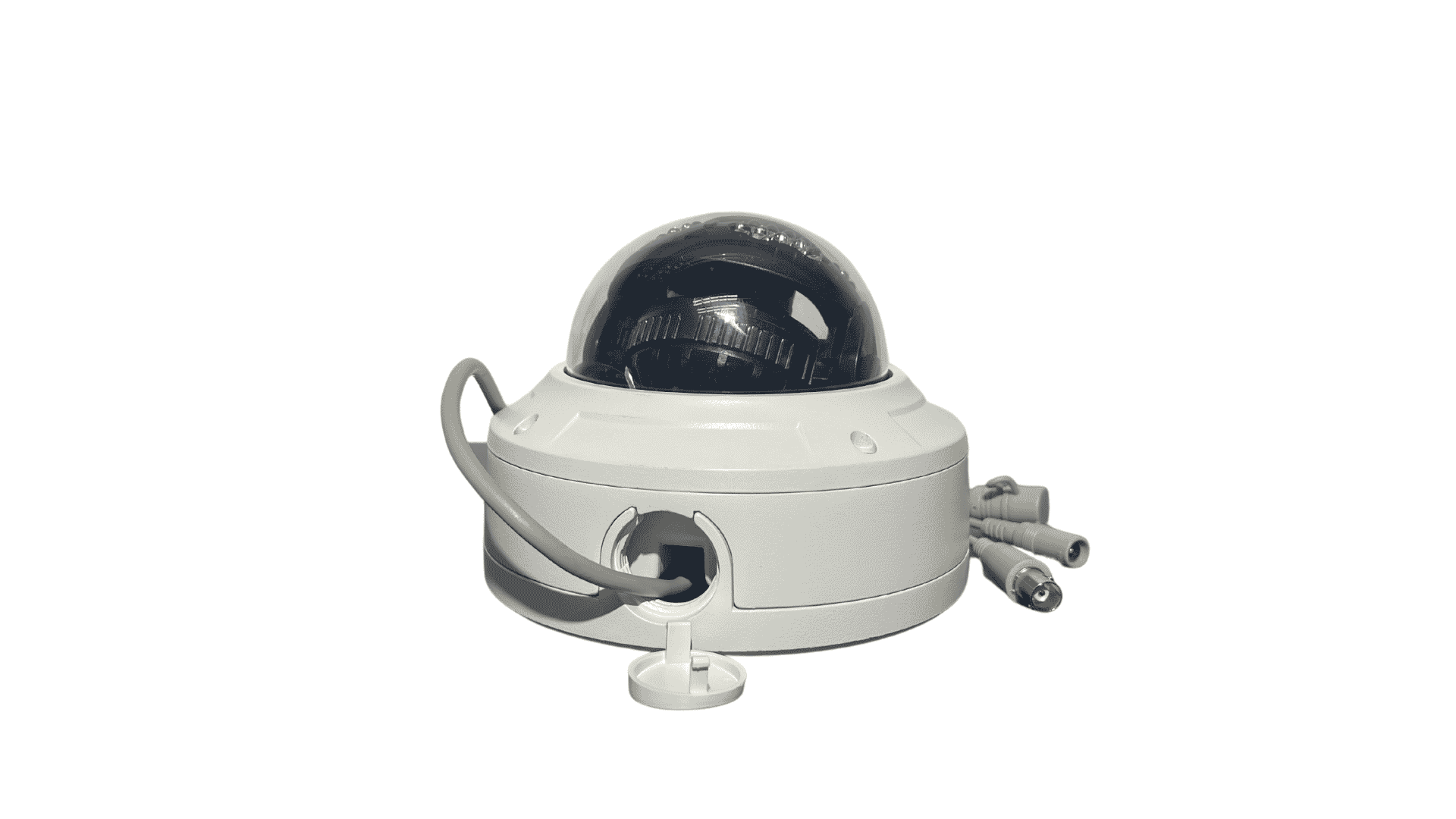

CÁMARA TVT HD 2MP DOMO VARIFOCAL 2.8mm-12mm TD-7523AE2L(D/FZ/SW/AR2)
Las cámaras Domo son cámaras con un diseño particular que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
| Model | TD-7523AE2L(D/FZ/SW/AR2) |
| Camera | |
| Image Sensor | 1 / 2.9 «CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD / TVI /CVI/CVBS |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto; 1 / 50s ~ 1 / 100000s ( PAL );1 / 60s ~ 1 / 100000s ( NTSC ) |
| IR Distance | 20 ~ 30 m |
| Frame Rate | 30fps(60Hz); 25fps (50Hz) |
| Min. Illumination | Color : 0.001 lux@F1.2, AGC ON; B/W : 0 lux with IR |
| Lens | 2.8~12 mm |
| Lens Mount | D14 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP66 & IK10 |
| Functions | |
| Function Control | OSD ( COC Control ) |
| Day & Night | ICR |
| Digital WDR | Yes |
| 2D/3D NR | Yes |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Defog | No |
| HLC | No |
| Sharpness | Yes |
| Mirror Image | No |
| Smart IR | No |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~77°; Rotation: 0°~360° |
| Others | |
| Power Supply | DC12V ( ± 10% ) |
| Power Consumption | IR OFF : < 1W; IR ON : < 4W |
| Working Environment | – 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
| Dimensions ( mm ) | Ф150.4 x 114.2 |
| Weight ( net ) | Approx. 0.93KG |
