Description

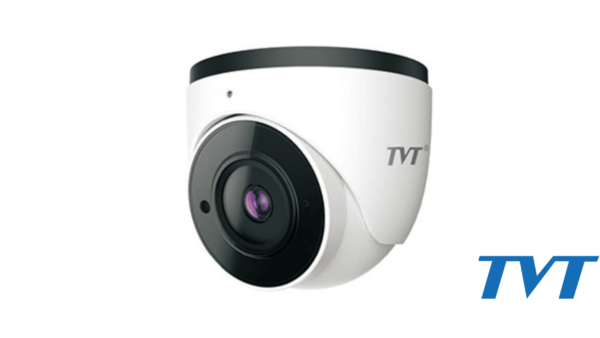

CAMARA TVT IP 2MP DOMO METAL 2.8mm TD-9524S3H(D/PE/AR2)
Las cámaras Domo son cámaras con un diseño particular, en este caso con un diseño de torreta, que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
Este producto, utiliza una avanzada tecnología conocida como Starlight que, con una mayor apertura reduciendo la velocidad del obturador para captar la suficiente luz y poder mostrar las imágenes con mayor claridad.
| Model | TD-9524S3H |
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.007 lux@F2.0,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm @F2.0, H.FoV: 103.5°; V.FoV:54.1°; D.FoV:107.7° |
| 3.6 mm @F1.2, H.FoV: 92°; V.FoV:47.7°; D.FoV:96.7° | |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Image | |
| Video Compression | Main stream: H.265 / H.264; Sub stream: H.265 / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) |
| 50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) | |
| Sub Stream | 60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 128 Kbps ~ 6Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 |
| Video Output | NO |
| Audio | 1CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 128GB |
| Reset | Yes |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPs, HTTP, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Intelligent Analytics | Video blur detection, intrusion detection and line crossing detection |
| Smart Alarm | Motion detection, SD card error, SD card full |
| General function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Optional |
| IR Distance | 20 ~ 30 m |
| Ingress Protection | IP 67 |
| Others | |
| Power Supply | DC12V |
| Power Consumption | < 6W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) | |
| Dimensions ( mm ) | Φ 94.6 × 82.8 |
| Weight ( net ) | Approx. 0.45KG |
| Installation | Ceiling mounting (wall mounting available with the junction box and bracket) |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
