Description

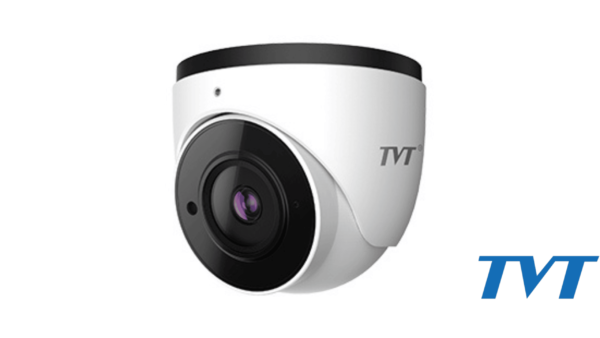

CAMARA TVT IP 4MP DOMO 2.8mm + MICROFONO TD-9544S3(D/PE/AR2)
Las cámaras Domo son cámaras con un diseño particular, en este caso con un diseño de torreta, que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
| Model | TD-9544S3 |
| Camera | |
| Image Sensor | 1 / 2.7 «CMOS |
| Image Size | 2560×1440 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.011 lux @F1.2, AGC ON; 0 lux with IR |
| 0.04 lux @ F2.2, AGC ON; 0 lux with IR | |
| Lens | 2.8mm@F2.0, Horizontal FoV: 110°; Vertical FoV:77.6°; Diagonal FoV:117° |
| 3.6mm@F2.2, Horizontal FoV: 89°; Vertical FoV:58°; Diagonal FoV:97° | |
| Focus | Fixed |
| Lens Mount | M12 |
| Day&Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° |
| Image | |
| Video Compression | H.265 / H.264 |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 4MP/3MP/1080P(1~30fps); 50Hz : 4MP/3MP/1080P(1~25fps) |
| Sub Stream | 60Hz : 720P(1~15fps)/D1(1~30fps)/CIF (1~30fps); |
| 50Hz: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps); | |
| Third Stream | 60Hz : D1/CIF/480×240 (1~30fps); 50Hz: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 5 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH Built-in MIC |
| Storage | Built-in micro SD card slot, up to 128GB |
| Reset | Yes |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SD card full, SD card error |
| Smart Events | Object removal (object left/missing detection), scene change and video blur detection, intrusion and line crossing |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Yes |
| IR Distance | 20 ~ 30m |
| Ingress Protection | IP67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 5.5W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) | |
| Dimensions ( mm ) | Ø 94.6 × 82.8 |
| Weight ( net ) | Approx. 0.45KG |
| Installation | Ceiling mounting ( Wall mounting available with the junction box and bracket ) |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
