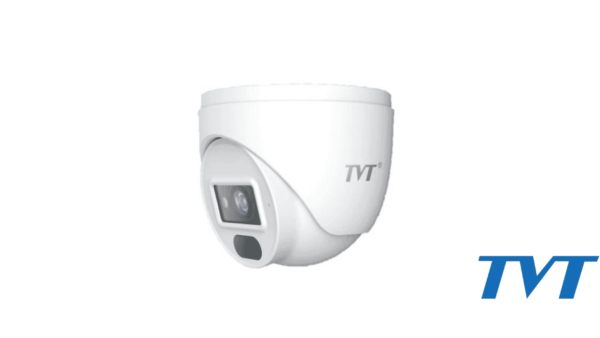

CAMARA TVT IP 4MP DOMO LITE 2.8mm + MICROFONO TD-9544S4L(D/PE/AR2)
Las cámaras Domo son cámaras con un diseño particular, en este caso con un diseño de torreta, que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
| Model | TD-9544S4L | |||
| Camera | ||||
| Image Sensor | 1 / 3 «CMOS | |||
| Image Size | 2560×1440 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.03 lux @F1.6, AGC ON; 0 lux with IR | |||
| Lens | 2.8mm@F1.6, Horizontal FoV: 98°;Vertical FoV:53°;Diagonal FoV:116° 3.6mm@F1.6, Horizontal FoV:80°;Vertical FoV:44°;Diagonal FoV:94° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 56.52m(185.43ft) | 22.61m(74.17ft) | 11.30m(37.07ft) | 5.65m(18.53ft) |
| 3.6mm | 71.28m(233.85ft) | 28.51m(93.53ft) | 14.26m(46.78ft) | 7.13m(23.39ft) |
| Image | ||||
| Video Compression | Main stream: H.265 / H.264 | |||
| Sub stream: H.265 / H.264 / MJPEG | ||||
| Third stream: H.265 / H.264 / MJPEG | ||||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, 480× 240, CIF | |||
| Main Stream | 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz: 720P/D1/CIF (1~30fps);50Hz: 720P/D1/CIF (1~25fps) | |||
| Third Stream | 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A/U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH built-in MIC | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage | |||
| Smart Alarm | Motion detection | |||
| Smart Event | Region intrusion detection, line crossing detection, abandoned/missing object detection, video exception (scene change, video blur and video cast detection) | |||
| General Function | Watermark, video mask, heartbeat, corridor pattern | |||
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration | |||
| encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs | ||||
| PoE | Optional (IEEE802.3 af) | |||
| IR Distance | 10 ~ 20 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | DC12V(PoE power supply optional) | |||
| Power Consumption | < 4.5W | |||
| Operating Environment | – 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing) | |||
| Storage Environment | – 20 °C ~ 60°C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Φ 94.8 × 82.8 | |||
| Weight ( net ) | Approx. 0.29KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
