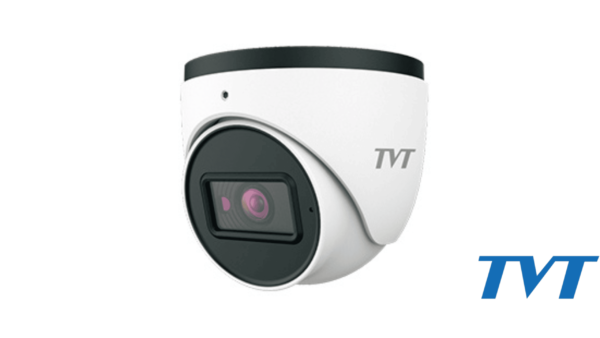

CAMARA TVT IP 2MP DOMO METAL SERIE E 2.8mm TD-9524E3B(D/PE/AR2)
Las cámaras Domo son cámaras con un diseño particular, en este caso con un diseño de torreta, que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
Este producto tiene la tecnología de: Realizar una protección de perímetro por intrusión, conteo por lineas, detectar un vandalismo por cambio de escena y también la detección de rostros.
| Model | TD-9524E3B |
| Camera | |
| Image Sensor | 1 / 2.8 «CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm@F1.6, horizontal FoV: 108°; vertical FoV: 75.3°; diagonal FoV:115.2° |
| 3.6 mm@F1.6, horizontal FoV: 89°; vertical FoV: 57.8°; diagonal FoV:96.8° | |
| Focus | Fixed |
| Lens Mount | M12 |
| Day& Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Image | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 |
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz:1080P/720P(1 ~ 30fps ); 50Hz:1080P / 720P( 1 ~ 25fps ) |
| Sub Stream | 60Hz:720P/D1/CIF (1~30fps); |
| 50Hz:720P/D1/CIF (1~25fps) | |
| Third Stream | 60Hz:D1/CIF /480×240 (1~30fps); 50Hz:D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; Built-in MIC × 1 |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Alarm | No |
| Intelligent Analytics (Smart Events) | |
| Perimeter Protection | Line crossing, intrusion (human/motor vehicle/non-motor vehicle classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video color cast detection |
| Face Detection | Face detection and face capture |
| Functions | |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE, DDNS, SMTP,SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SD card error, SD card full |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| PoE | Yes , IEEE802.3af |
| IR Distance | 20 ~ 30 m |
| Ingress Protection | IP 67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 7.5W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) | |
| Dimensions ( mm ) | Φ 94.6 × 82.8 |
| Weight ( net ) | Approx. 0.46KG |
| Installation | Ceiling mounting (wall mounting available with the junction box and bracket) |
| Certificate | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
