Descripción

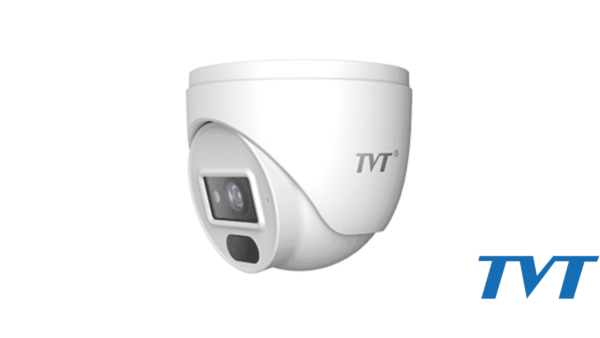

CAMARA TVT IP 2MP DOMO ESTRUCTURA SEMI – METALICA TD-9524S3BL(D/PE/AR)
Las cámaras Domo son cámaras con un diseño particular, en este caso con un diseño de torreta, que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
| Model | TD-9524S3BL | |||
| Camera | ||||
| Image Sensor | 1 / 2.8″CMOS | |||
| Image Size | 1920×1080 | |||
| Electronic Shutter | 1 s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0126lux @F1.2, AGC ON; 0 lux with IR | |||
| 0.0462 lux @ F2.2, AGC ON; 0 lux with IR | ||||
| Lens | 2.8 mm @F2.2, H.FoV: 97.8°; V.FoV:52.9°; D.FoV:117.9° | |||
| 3.6 mm @F2.2, H.FoV: 82.5°; V.FoV:44.9°; D.FoV:99.3° | ||||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | H.265 / H.264 | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF | |||
| Main Stream | 60Hz : 1080P/720P(1~30fps); 50Hz : 1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz : D1/CIF(1~30fps); 50Hz: D1/CIF/(1~25fps) | |||
| Bit Rate | 64 Kbps ~ 4 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Audio Compression | G711A/U | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH built-in MIC | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage | |||
| Smart Alarm | Motion detection | |||
| Intelligent Analytics | Region intrusion detection, video blur detection, scene change detection, line crossing detection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock | |||
| PoE | Yes, IEEE802.3af | |||
| IR Distance | 10 ~ 20m | |||
| Ingress Protection | IP67 | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 43.42m(142.45ft) | 17.37m(56.98ft) | 8.68m(28.47ft) | 4.34m(14.23ft) |
| 3.6mm | 52.28m(171.52ft) | 20.91m(68.6ft) | 10.46m(34.31ft) | 5.23m(17.15ft) |
| Others | ||||
| Power Supply | DC12V(PoE power supply optional) | |||
| Power Consumption | < 4 W | |||
| Operating Environment | – 20 °C ~ 55 °C (-4°F~131°F) | |||
| Humidity: less than 95 % (non-condensing) | ||||
| Dimensions ( mm ) | Φ 94.8 × 82.8 | |||
| Weight ( net ) | Approx. 0.287KG | |||
| Installation | Ceiling mounting ( Wall mounting available with the junction box and bracket ) | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
