Descripción

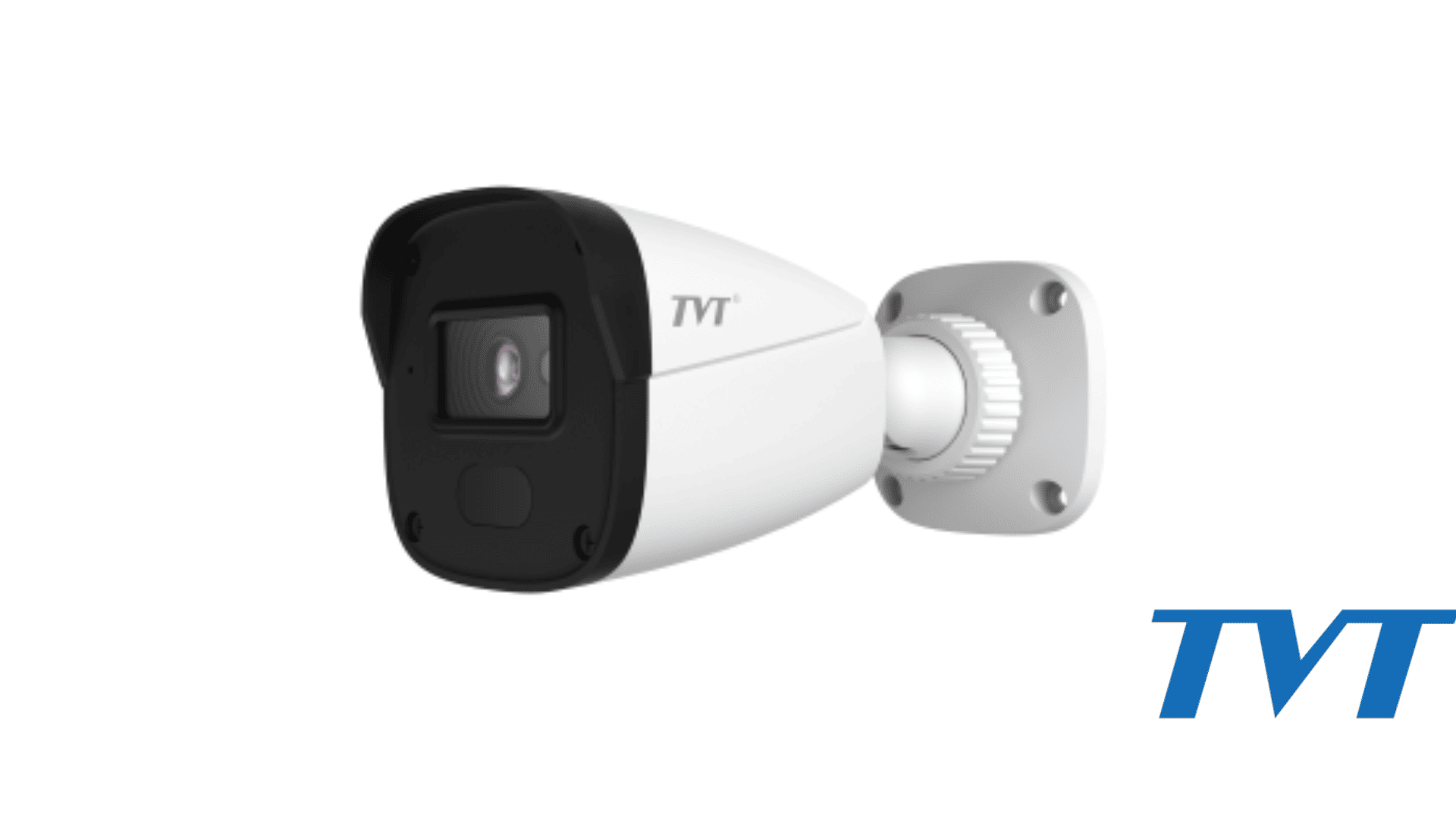

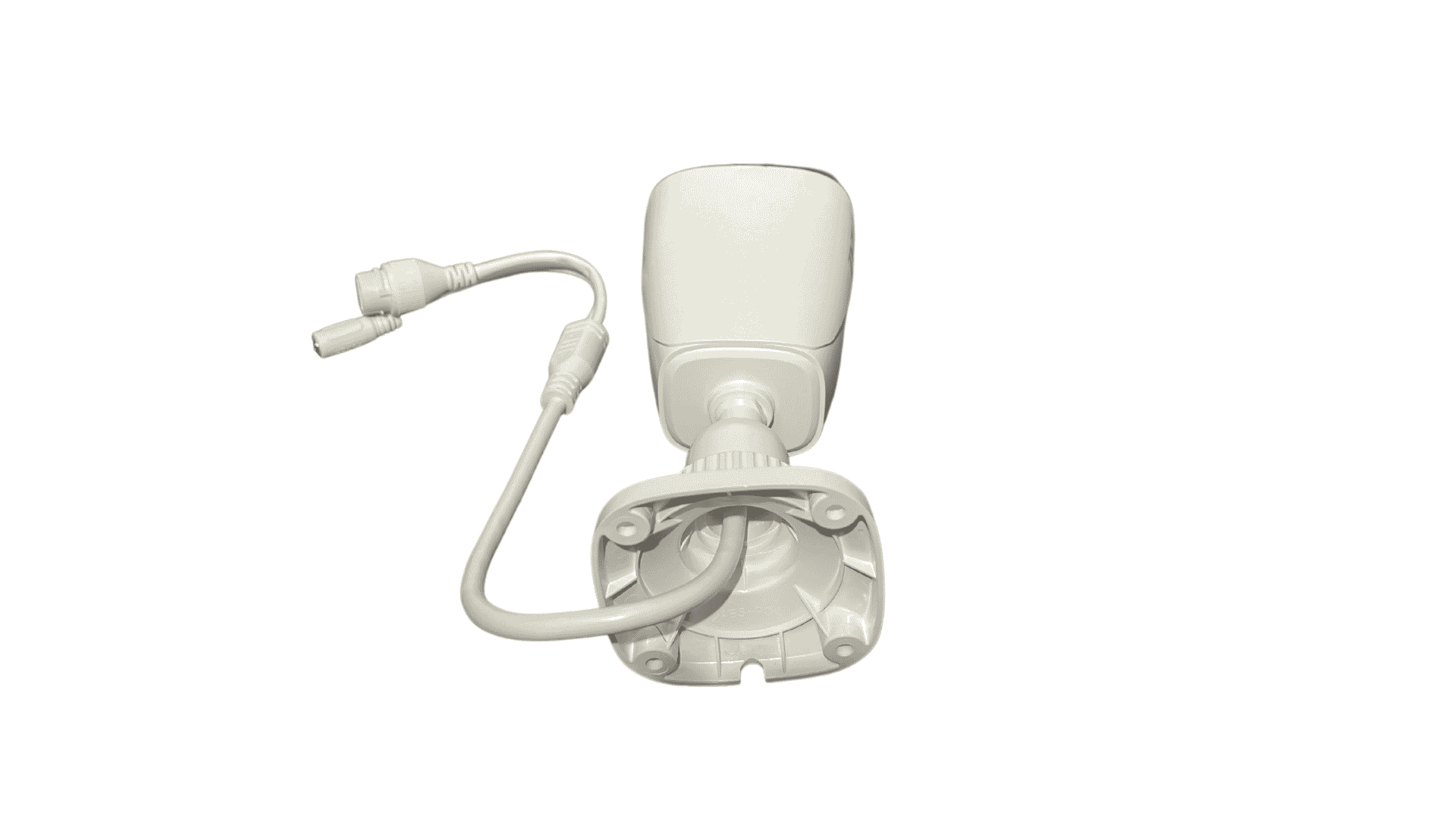

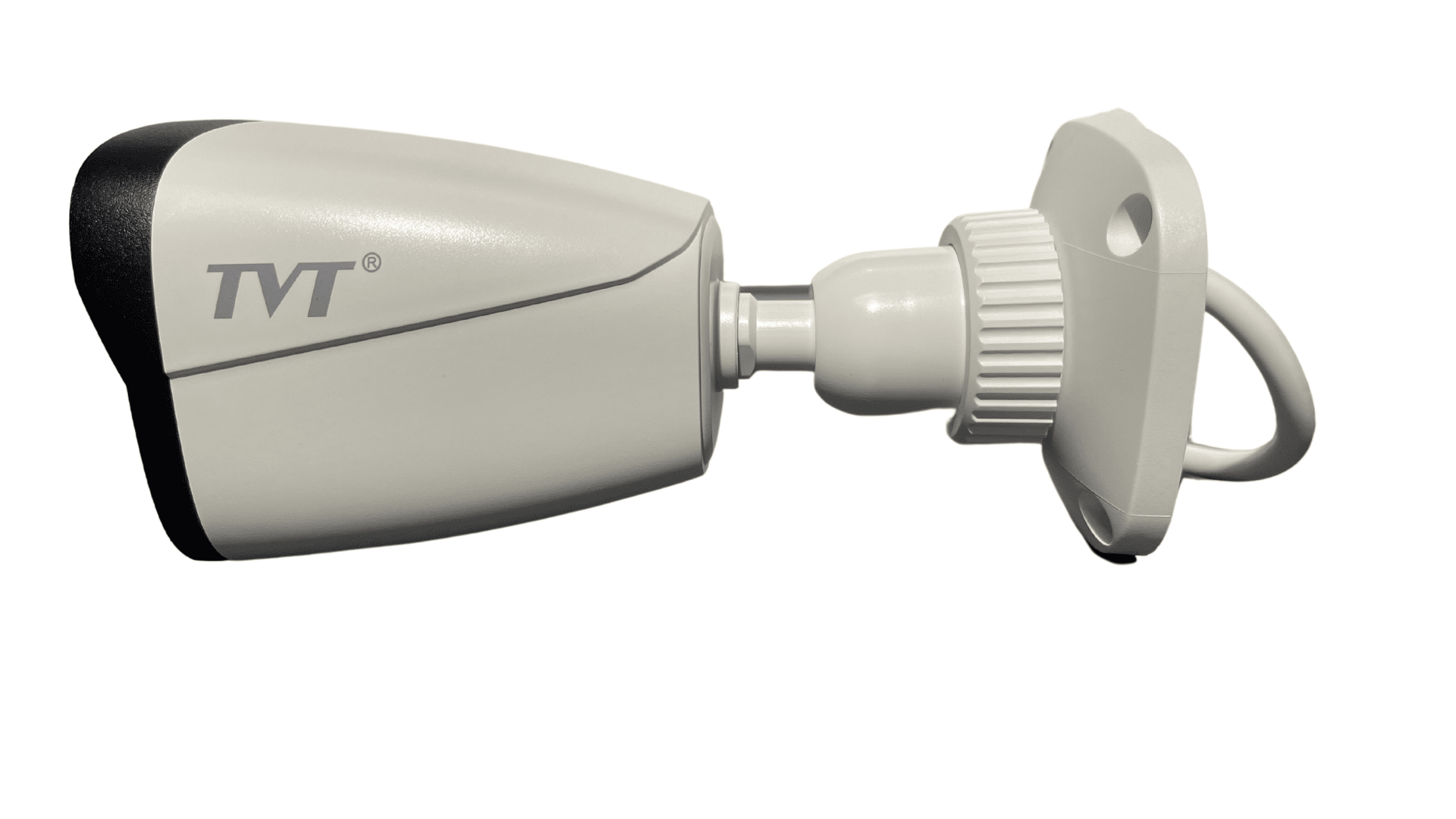

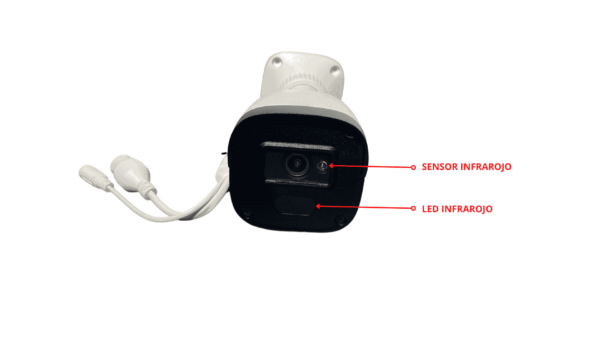

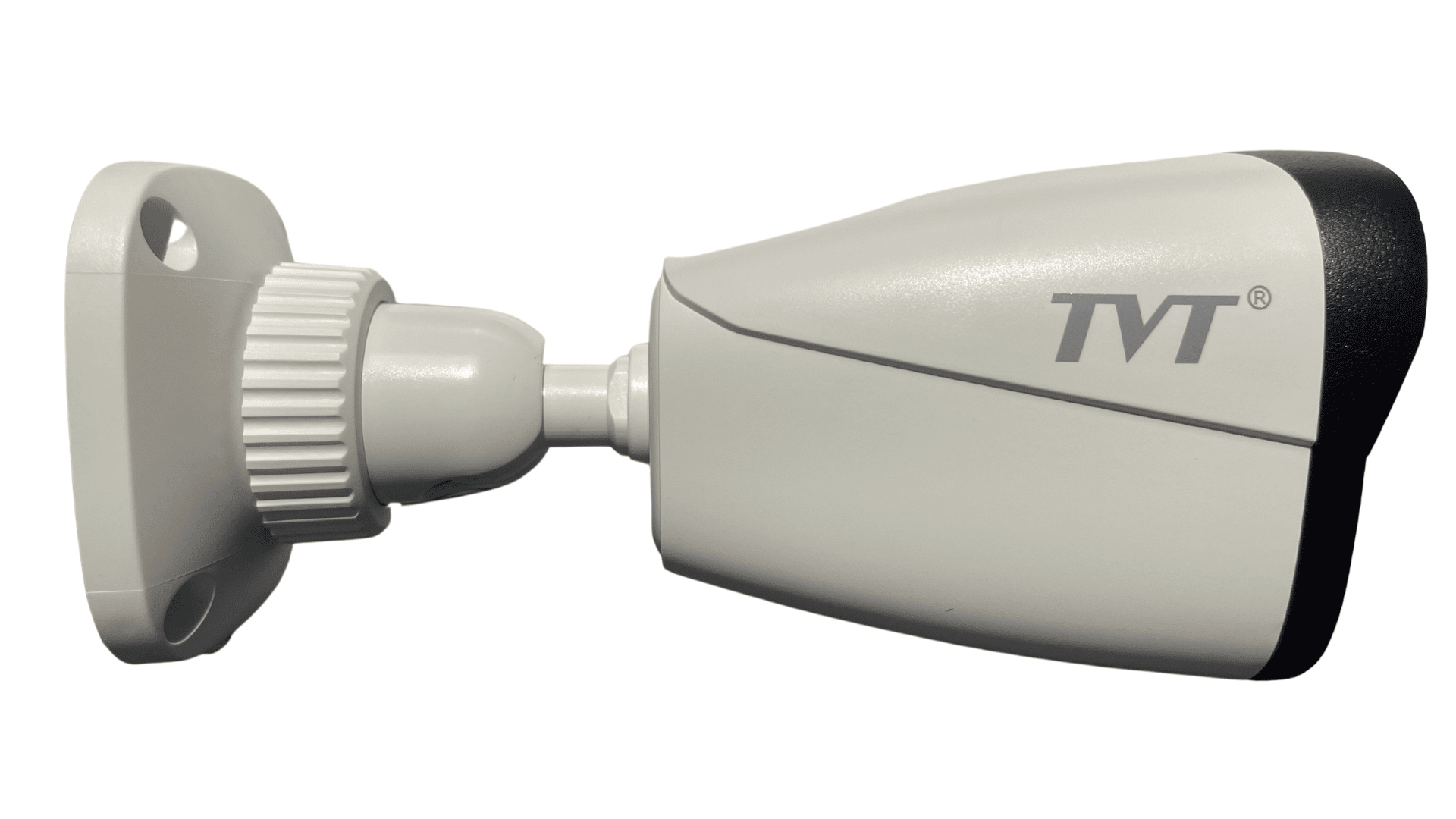

CAMARA TVT IP 4MP LITE BULLET 2.8mm METAL TD-9441S4L(D/PE/AR2)
Las cámaras bullet se utilizan para un uso exterior, ya que tienen una protección que las hacen resistentes a adversidades externas como la lluvia o el polvo. Aunque obviamente también pueden ser instaladas en el interior.
En este caso, este producto utiliza la tecnología IP para su funcionamiento, con un lente de 2.8mm para manejar una visión de 90 grados aprox con su estructura completamente metálica.
Por otro lado, las cámara tipo bullet suelen apuntar a una única dirección fija, otro de los motivos por los que se suelen instalar más bien en el exterior y espacios abiertos. Pudiéndose colocar tanto en techos como en paredes.
| Model | TD-9441S4L | |||
| Camera | ||||
| Image Sensor | 1 / 3 «CMOS | |||
| Image Size | 2560×1440 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.03 lux @F1.6, AGC ON; 0 lux with IR | |||
| Lens | 2.8mm@F1.6, Horizontal FoV: 98°;Vertical FoV:53°;Diagonal FoV:116° 3.6mm@F1.6, Horizontal FoV:80°;Vertical FoV:44°;Diagonal FoV:94° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 56.52m(185.43ft) | 22.61m(74.17ft) | 11.30m(37.07ft) | 5.65m(18.53ft) |
| 3.6mm | 71.28m(233.85ft) | 28.51m(93.53ft) | 14.26m(46.78ft) | 7.13m(23.39ft) |
| Image | ||||
| Video Compression | Main stream: H.265 / H.264 | |||
| Sub stream: H.265 / H.264 / MJPEG | ||||
| Third stream: H.265 / H.264 / MJPEG | ||||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, 480× 240, CIF | |||
| Main Stream | 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz: 720P/D1/CIF (1~30fps);50Hz: 720P/D1/CIF (1~25fps) | |||
| Third Stream | 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | No | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage | |||
| Smart Alarm | Motion detection | |||
| Smart Event | Region intrusion detection, line crossing detection, abandoned/missing object detection, video exception (scene change, video blur and video cast detection) | |||
| General Function | Watermark, video mask, heartbeat, corridor pattern | |||
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration | |||
| encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs | ||||
| PoE | Yes | |||
| IR Distance | 10 ~ 20 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 3.5W | |||
| Operating Environment | – 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing) | |||
| Storage Environment | – 20 °C ~ 60°C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 162.1 × 74.8 × 73.8 | |||
| Weight ( net ) | Approx. 0.24KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
