Descripción

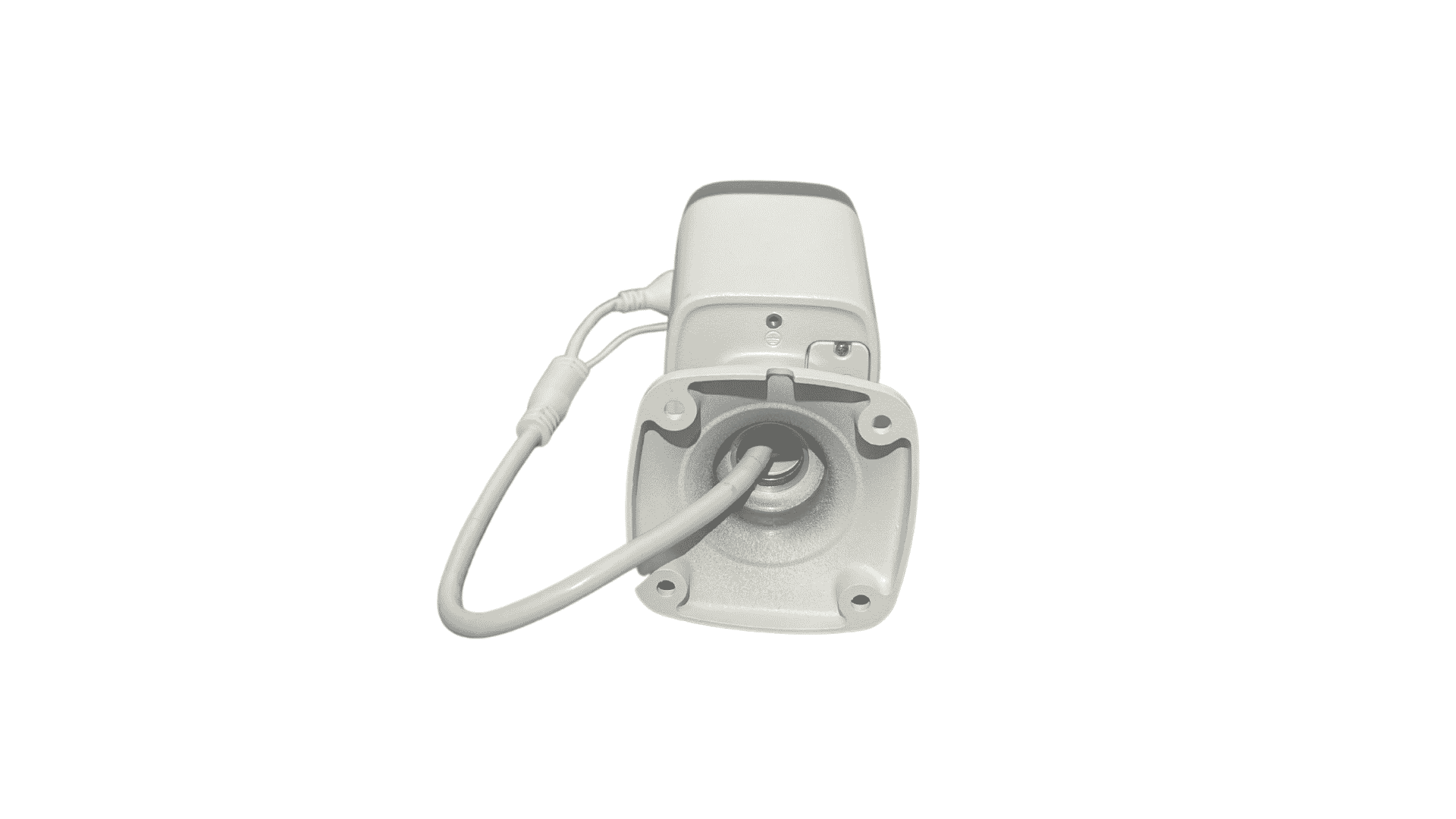

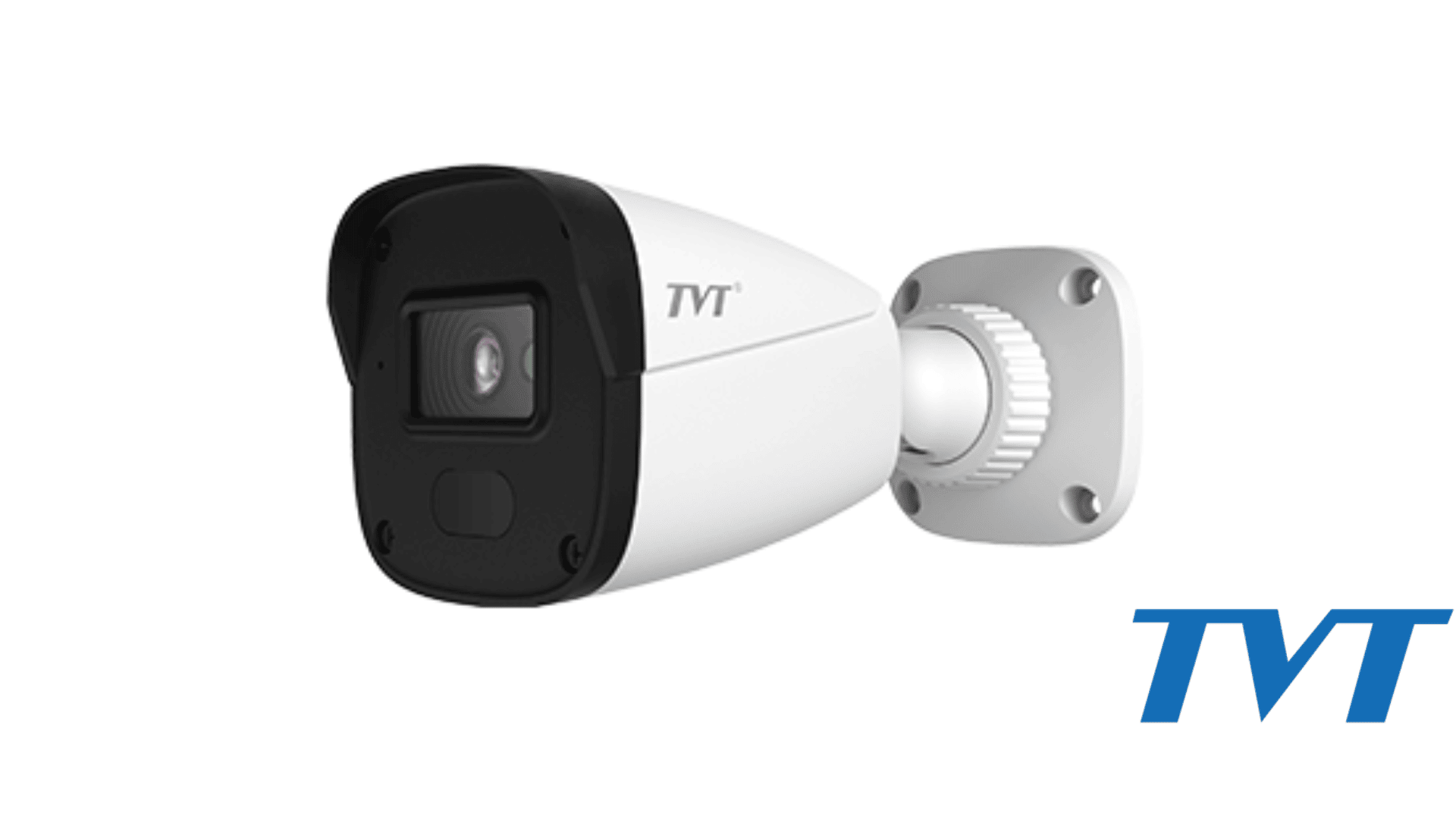

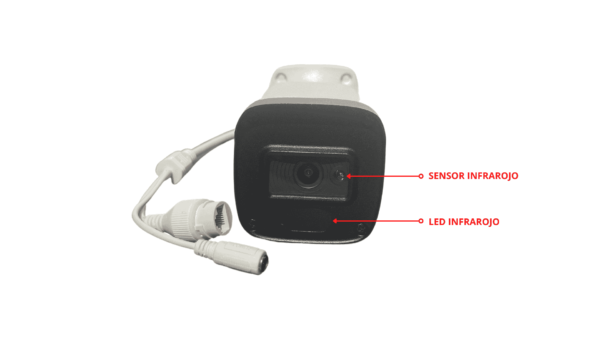

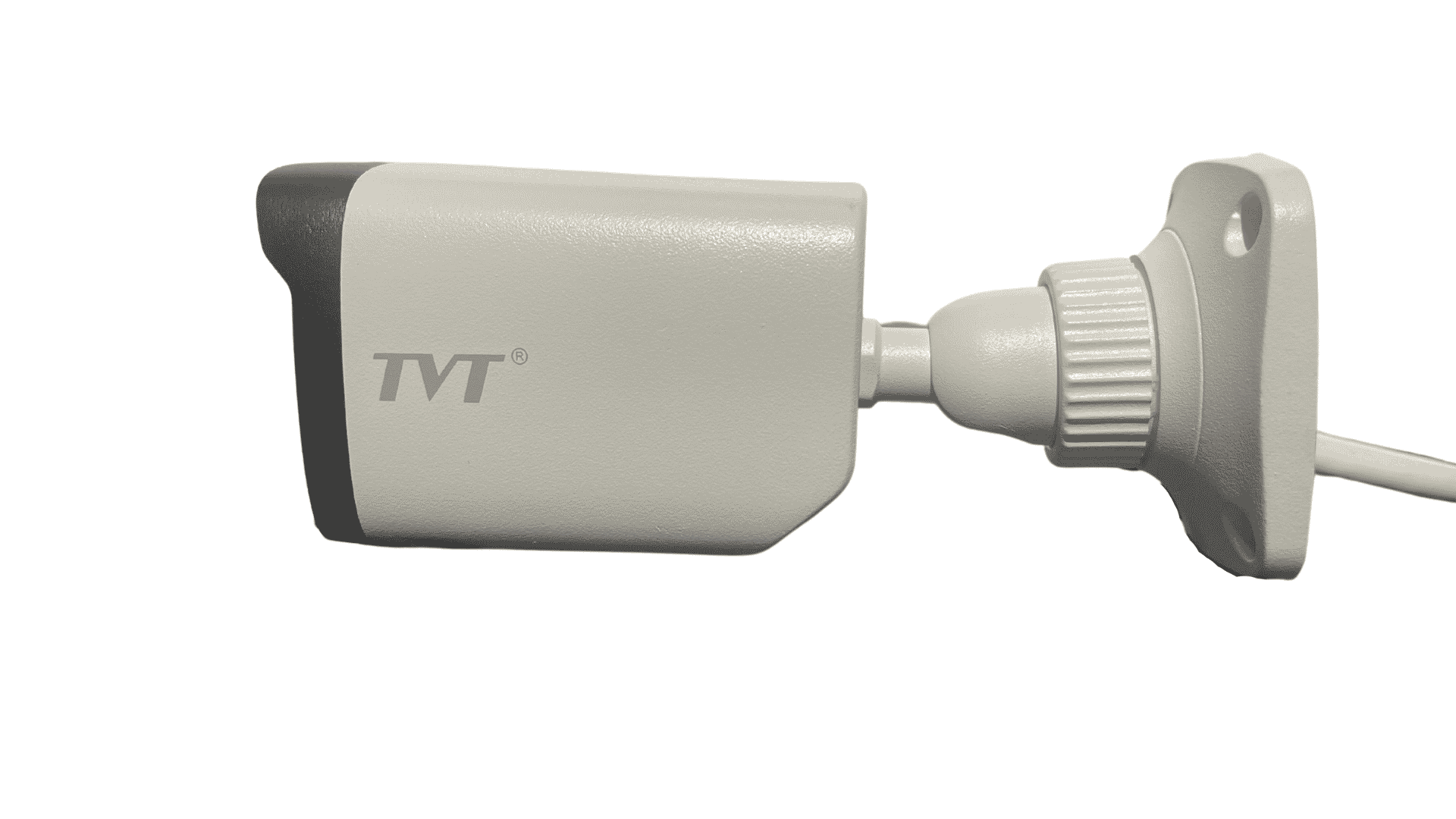

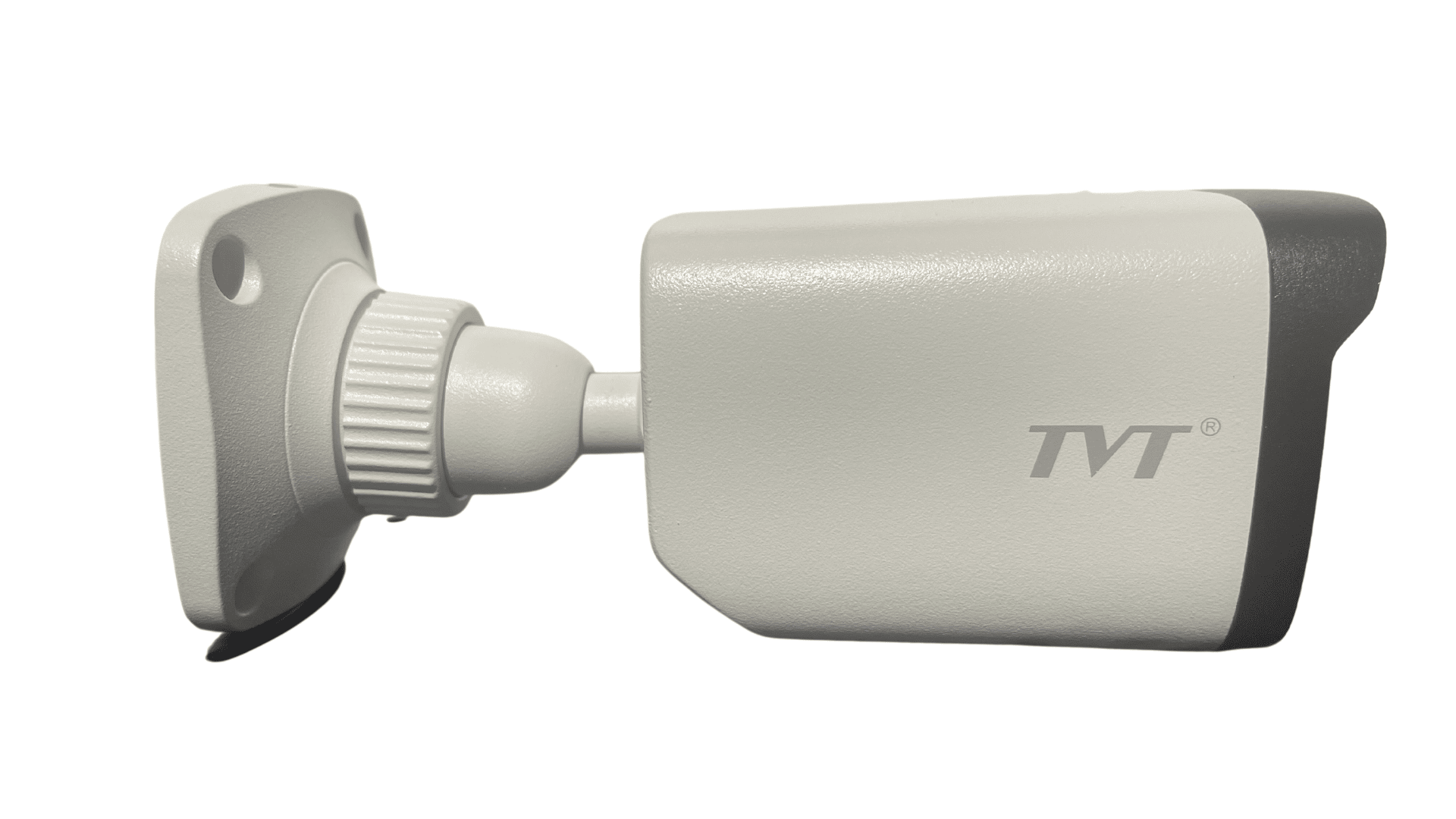

CAMARA TVT IP 4MP BULLET ESTRUCTURA METALICA 2.8mm TD-9441S3L (D/PE/AR2)
Las cámaras bullet se utilizan para un uso exterior, ya que tienen una protección que las hacen resistentes a adversidades externas como la lluvia o el polvo. Aunque obviamente también pueden ser instaladas en el interior.
En este caso, este producto utiliza la tecnología IP para su funcionamiento, con un lente de 2.8mm para manejar una visión de 90 grados aprox.
Por otro lado, las cámara tipo bullet suelen apuntar a una única dirección fija, otro de los motivos por los que se suelen instalar más bien en el exterior y espacios abiertos. Pudiéndose colocar tanto en techos como en paredes.
| Model | TD-9441S3L |
| Camera | |
| Image Sensor | 1 / 2.7 «CMOS |
| Image Size | 2560×1440 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.011 lux @F1.2, AGC ON; 0 lux with IR |
| 0.04 lux @ F2.2, AGC ON; 0 lux with IR | |
| Lens | 2.8 mm @F2.0, (fixed lens), horizontal field of view: 110° |
| 3.6 mm @F2.2, (fixed lens), horizontal field of view: 89° | |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| Image | |
| Video Compression | H.265 / H.264 |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 4MP(1~20fps)/3MP(1~30fps)/1080P(1~30fps); |
| 50Hz : 4MP(1~20fps)/3MP(1~25fps)/1080P(1~25fps) | |
| Sub Stream | 60Hz : 720P(1~15fps)/D1(1~30fps)/CIF (1~30fps); |
| 50HZ: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps); | |
| Third Stream | 60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 5 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Video Output | No |
| Audio | No |
| Storage | No |
| Reset | No |
| Functions | |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion detection |
| Region intrusion detection, object removal detection, abnormal video detection and line crossing detection | |
| Intelligent Analytics | |
| General function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Yes |
| IR Distance | 10 ~ 20m |
| Ingress Protection | IP67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 4W |
| Operating Environment | – 20 °C ~ 55 °C (-4°F~131°F) |
| Humidity: less than 95 % (non-condensing) | |
| Dimensions ( mm ) | 162.1 × 74.8 × 73.8 |
| Weight ( net ) | Approx. 0.24KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
