Descripción

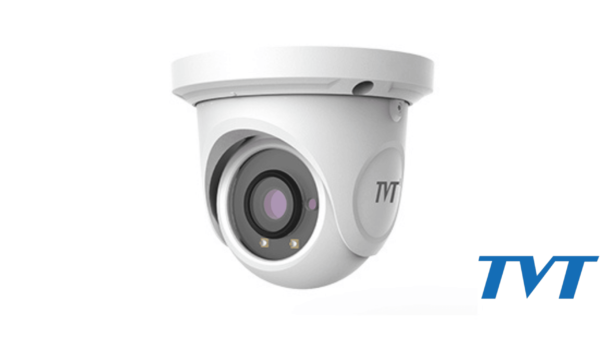

CAMARA TVT IP 2MP DOMO METAL 2.8mm H.265 TD-9524S4B(D/PE/AR2)
Las cámaras Domo son cámaras con un diseño particular, en este caso con un diseño de torreta, que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
| Model | TD-9524S4B |
| Camera | |
| Image Sensor | 1 / 2.9 «CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.03 lux@F2.5,AGC ON; 0 lux with IR 0.007 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm @F2.0, horizontal field of view: 108.2° 3.6mm @F2.4, horizontal field of view: 88° 6mm @F1.6, horizontal field of view: 52.3° |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
| Sub Stream | 60Hz : D1/CIF/480×240 (1~30fps) 50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 256 Kbps ~ 4 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Defog, Sharpen, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion detection |
| Intelligent Analytics | Abnormal video signal detection, line crossing detection and region intrusion detection optional |
| General function | Watermark, IP address filtering, video mask, heartbeat, password protection |
| PoE | Optional |
| IR Distance | 10 ~ 20 m |
| Ingress Protection | IP66 |
| Others | |
| Power Supply | DC12V(PoE power supply optional) |
| Power Consumption | < 4W |
| Operating Environment | -30 °C ~ 60 °C (-22°F~140°F),Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | Φ 108 × 91.4 |
| Weight ( net ) | Approx. 0.37KG |
| Installation | Ceiling mounting(Wall mounting available with the junction box and bracket) |
