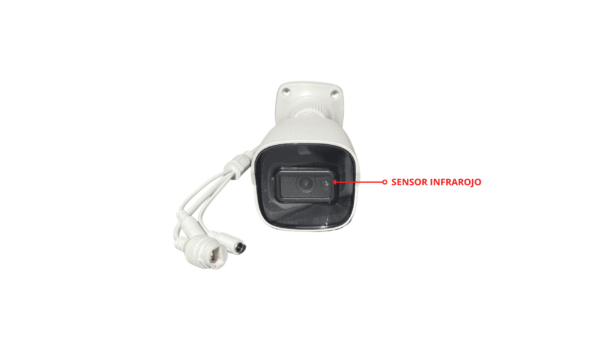

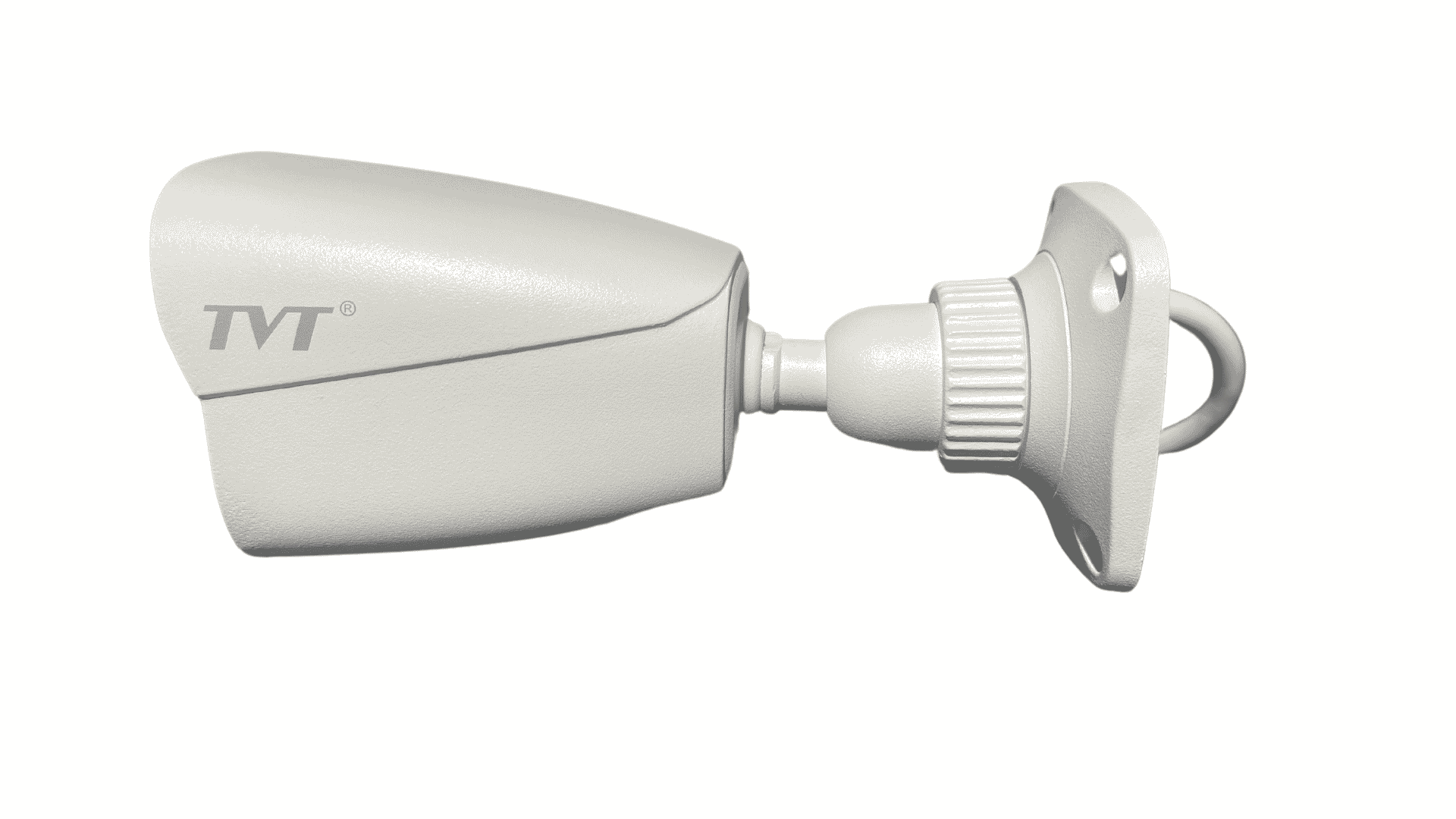

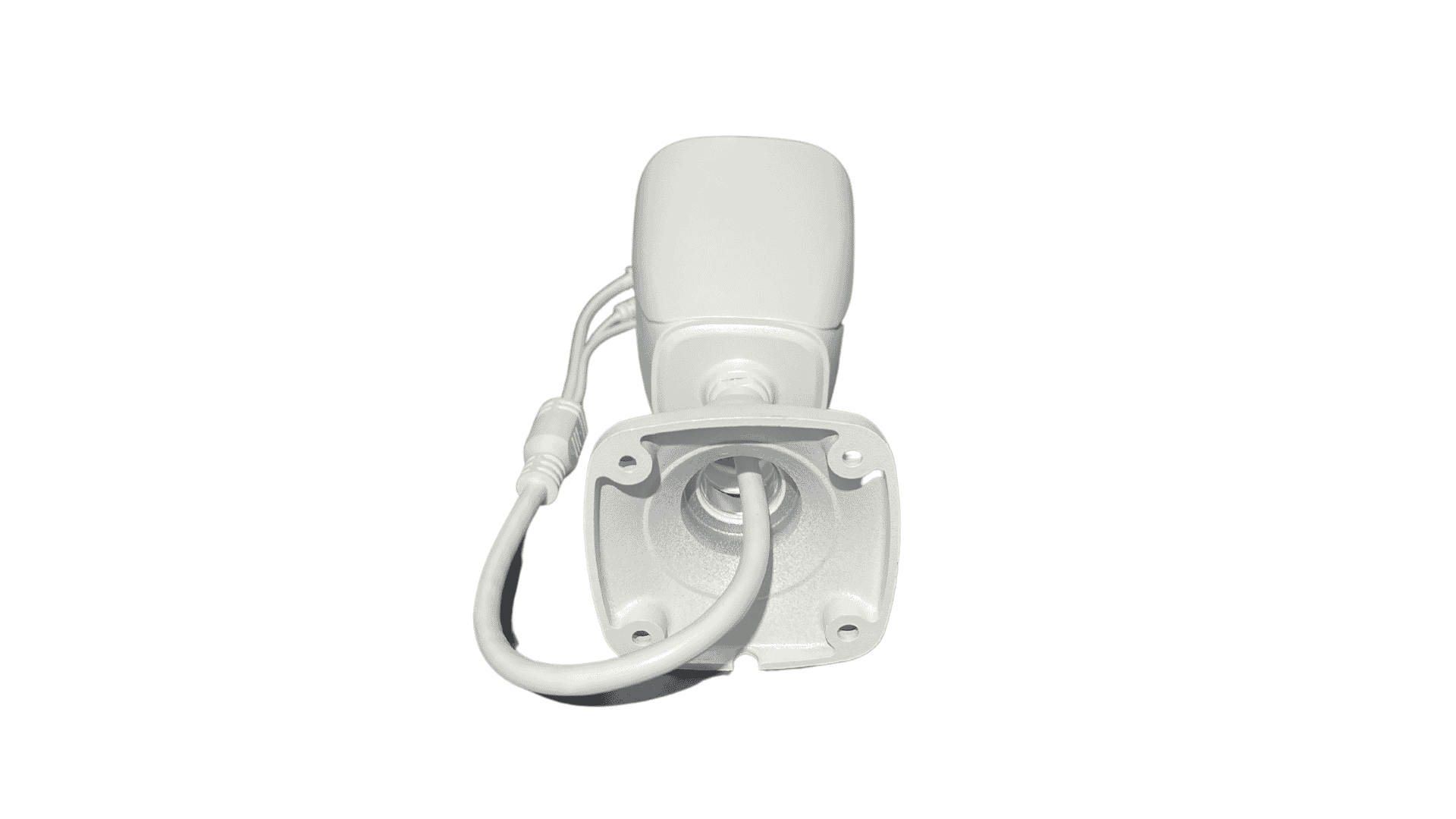

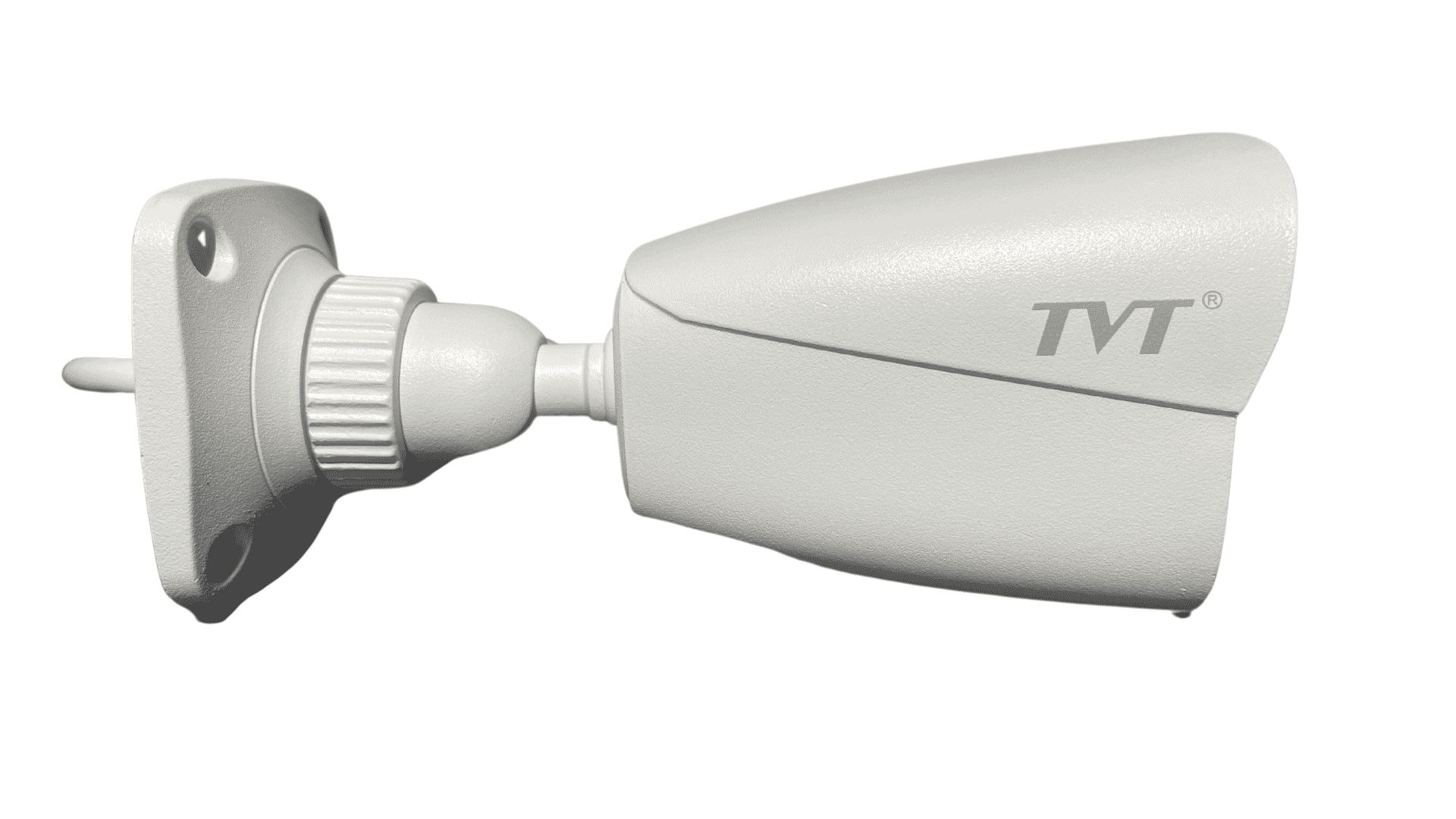

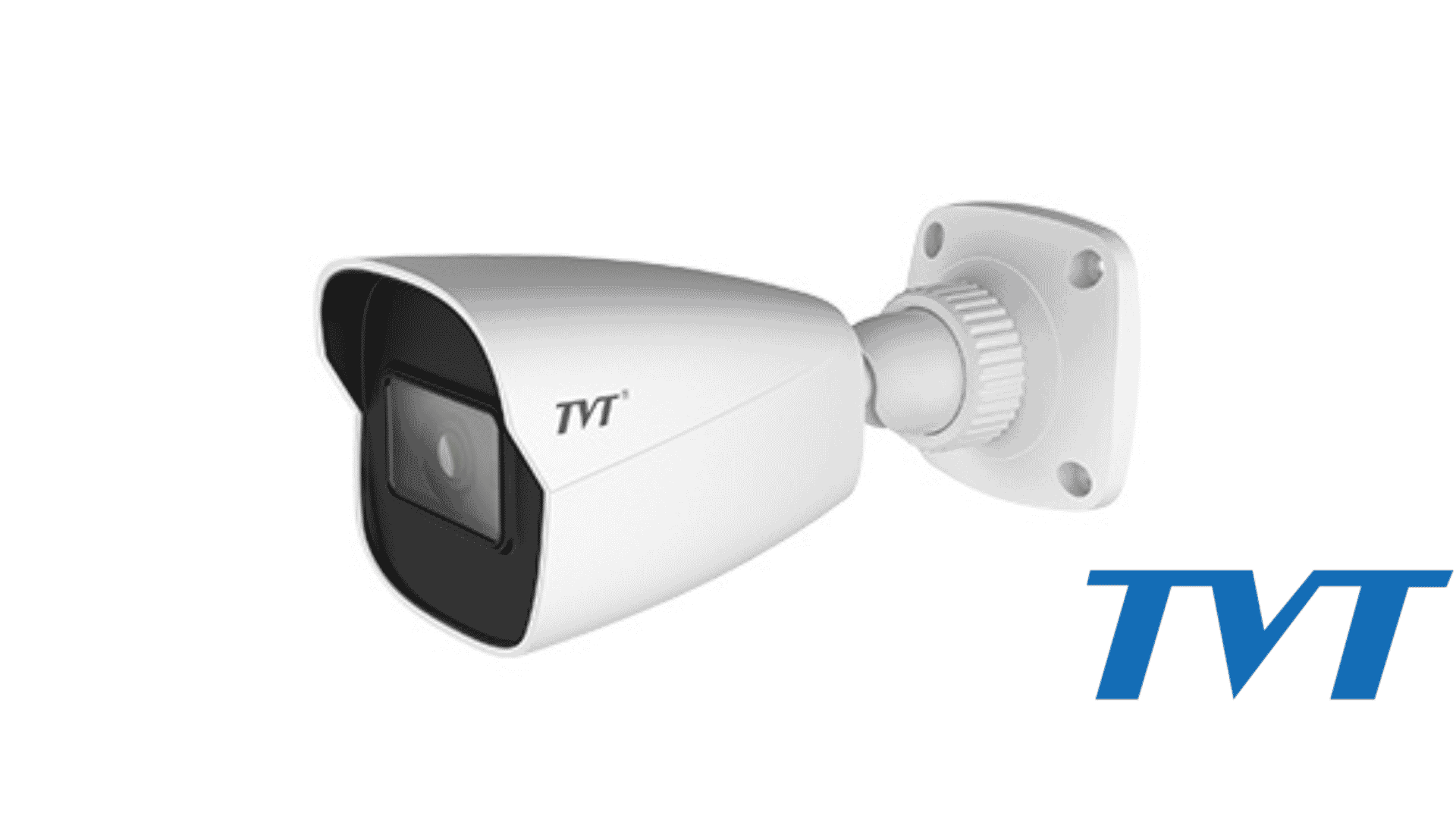

CAMARA TVT IP BULLET 2MP METAL 2.8mm 30 mts IR TD-9421S3B(D/PE/AR2)
Las cámaras bullet se utilizan para un uso exterior, ya que tienen una protección que las hacen resistentes a adversidades externas como la lluvia o el polvo. Aunque obviamente también pueden ser instaladas en el interior.
En este caso, este producto maneja la tecnología IP para su funcionamiento, con un lente de 2.8mm para manejar una visión de 90 grados aprox.
Por otro lado, las cámara tipo bullet suelen apuntar a una única dirección fija, otro de los motivos por los que se suelen instalar más bien en el exterior y espacios abiertos. Pudiéndose colocar tanto en techos como en paredes.
Este modelo, tiene una estructura metálica, con resistencia a inmersión completa al agua.
| Model | TD-9421S3B |
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.0035 lux@F1.2,AGC ON; 0 lux with IR |
| 0.009 lux@F1.6,AGC ON; 0 lux with IR | |
| Lens | 2.8 mm @F1.6, H.FoV: 103.7°, V.FoV:55.1°, D.FoV:124° |
| 3.6 mm @F1.6, H.FoV: 86.1°, V.FoV:43.7°, D.FoV:103° | |
| Focus | Fixed |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| Image | |
| Video Compression | H.265 / H.264 |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) |
| 50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) | |
| Sub Stream | 60Hz : D1/CIF (1~30fps); 50HZ: D1/CIF (1~25fps) |
| Third Stream | 60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 6Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Defog, |
| Sharpness, NR, etc. adjustable through client software or web browser | |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 |
| Audio | 1CH audio input |
| Storage | Built-in micro SD card slot; up to 128GB |
| Reset | Yes |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users; |
| Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, FTP, |
| UPnP, HTTPs, HTTP, QoS | |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SD card full, SD card error |
| Intelligent Analytics | Video blur detection, scene change detection, line crossing detection, region |
| intrusion detection and object removal detection (object left/missing) | |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Yes, IEEE802.3af |
| IR Distance | 20 ~ 30 m |
| Ingress Protection | IP 67 |
| Others | |
| Power Supply | DC12V / PoE |
| Power Consumption | < 5.5W |
| Operating | – 30 °C ~ 60 °C (-22°F~140°F) |
| Environment | Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 167.5 × 74.5 × 74.5 |
| Weight ( net ) | Approx. 0.39KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
