Description

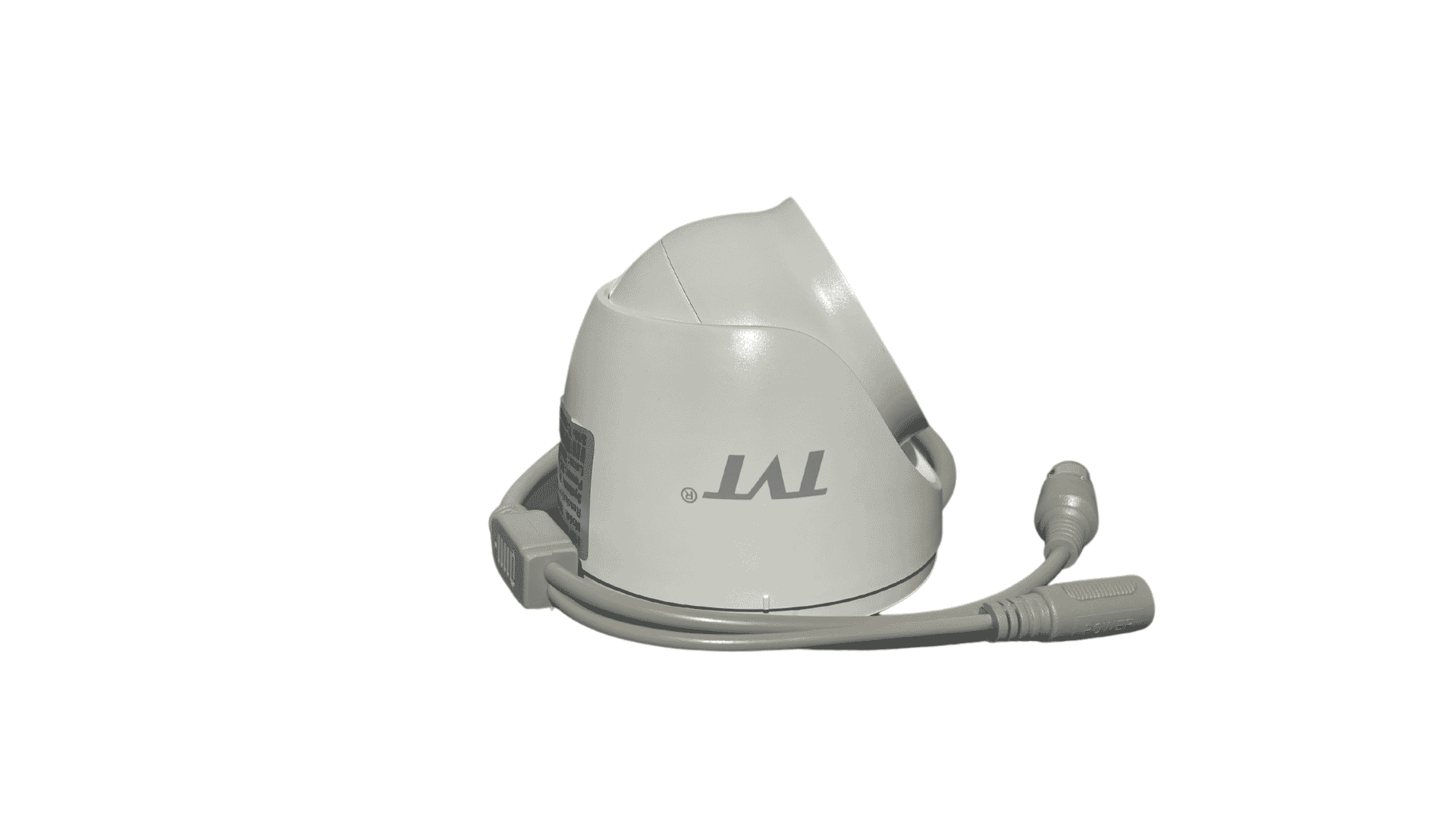

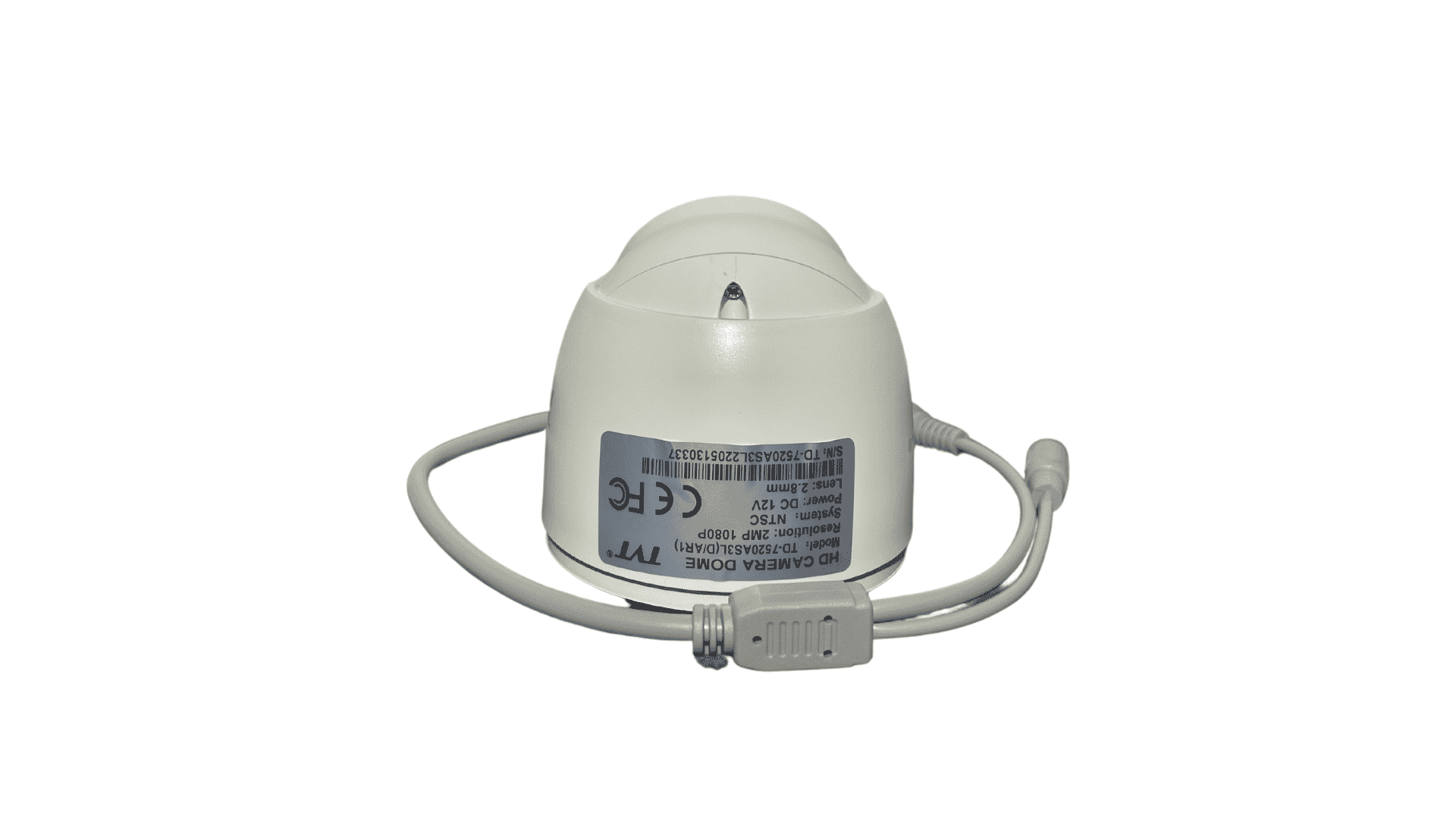

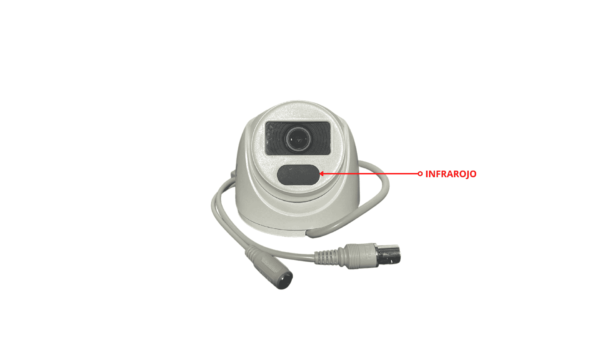

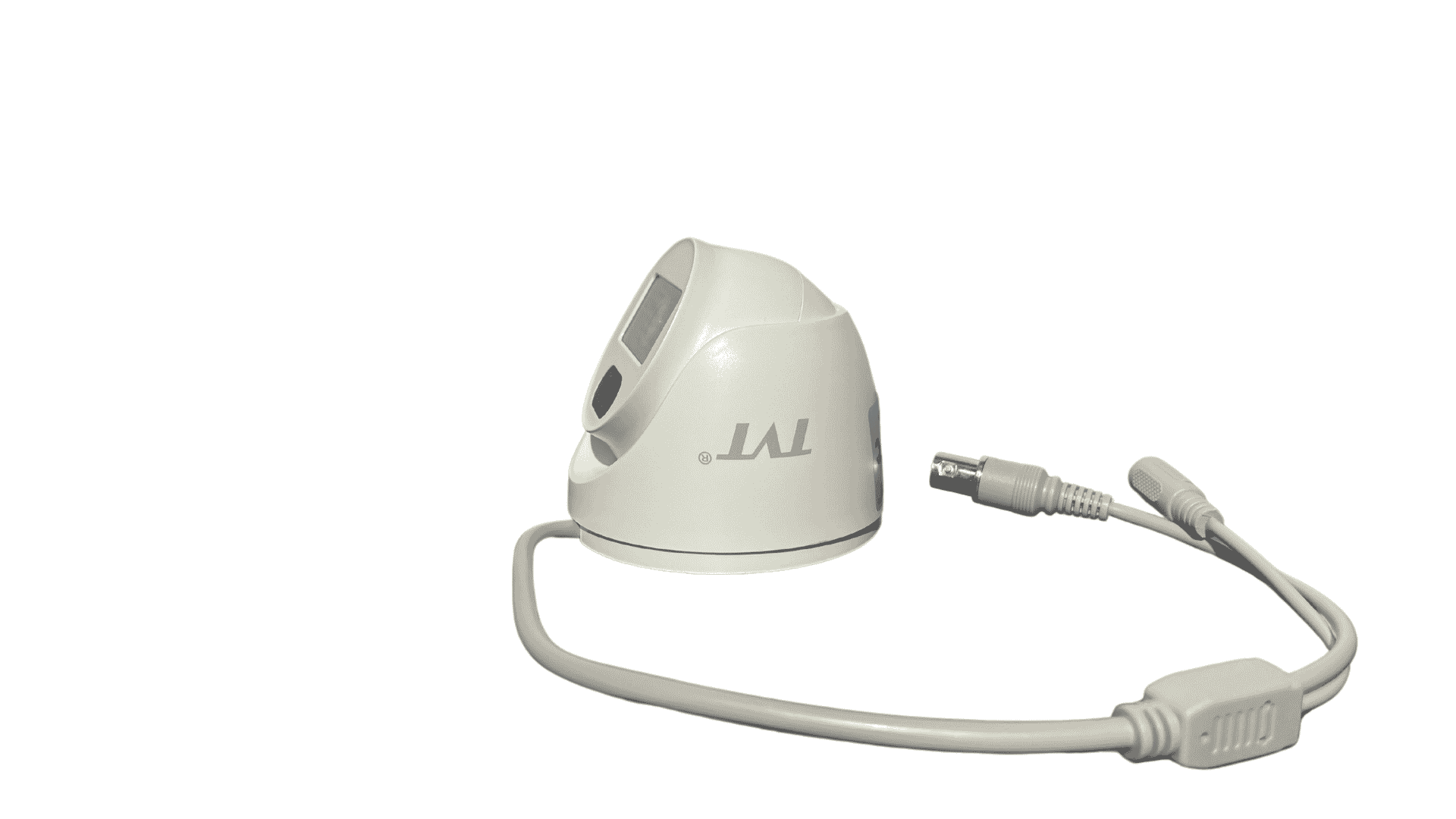

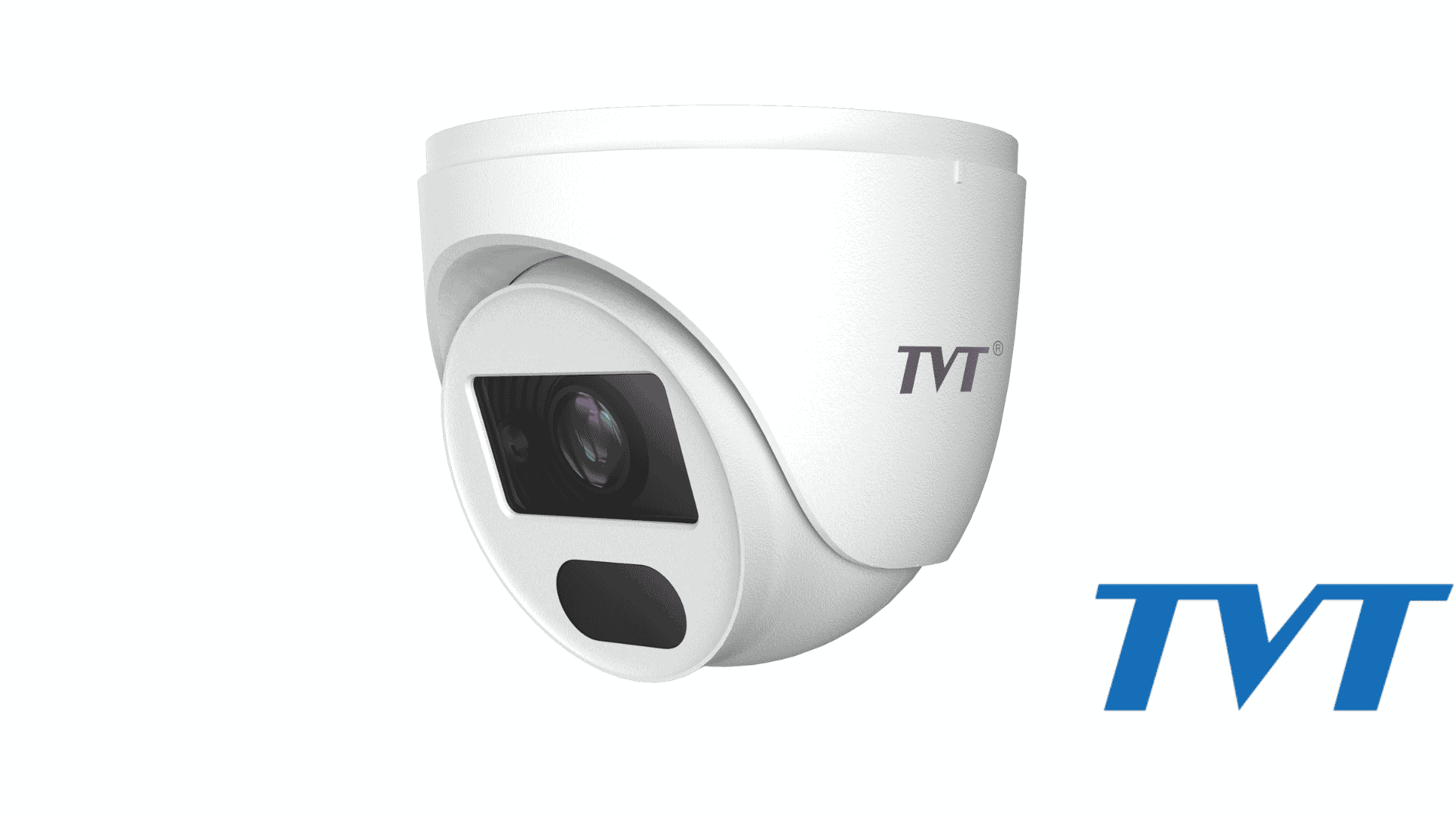

CÁMARA TVT HD 2MP DOMO ESTRUCTURA PLÁSTICA 2.8mm TD-7520AS3L(D/AR1)
Las cámaras Domo son cámaras con un diseño particular, en este caso con un diseño de torreta, que contiene un lente en su interior. Son muy habituales en la protección de espacios interiores por su atractivo diseño y las posibilidades de tamaños que en algunos casos llegan incluso a pasar inadvertidos.
| Model | TD-7520AS3L |
| Camera | |
| Image Sensor | 1 / 3″CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD / TVI /CVI/CVBS |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto; 1 / 50s ~ 1 / 100000s ( PAL ); |
| 1 / 60s ~ 1 / 100000s ( NTSC ) | |
| IR Distance | 10 ~20 m |
| Frame Rate | 30fps(60Hz); 25fps (50Hz) |
| Min. Illumination | 0 lux (IR ON) |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Protection Grade | IP 66 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Functions | |
| Function Control | OSD ( COC Control ) |
| Day & Night | ICR |
| Digital WDR | Yes |
| Digital NR | Yes, 2D/3D DNR |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| FLC | Yes |
| Defog | No |
| HLC | No |
| Sharpness | Yes |
| Mirror | No |
| Smart IR | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
| Others | |
| Power Supply | DC12V ( ± 10% ) |
| Power Consumption | IR OFF : < 1W; IR ON : < 3W |
| Working Environment | – 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
| Dimensions ( mm ) | Ф 77.5 x 67.6 |
| Weight ( net ) | Approx. 0.13KG |
